tsEDDImageDescMsg Struct Reference
image description message (Server->Client) More...
#include <EDDImageDataMsg.h>

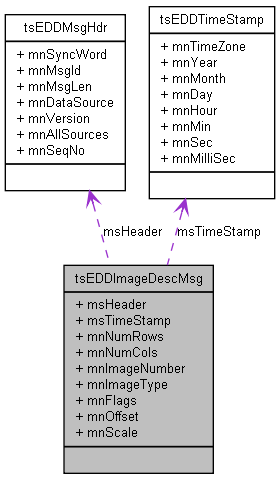

Collaboration diagram for tsEDDImageDescMsg:
Public Attributes | |
| tsEDDMsgHdr | msHeader |
| common EDD interface header | |
| tsEDDTimeStamp | msTimeStamp |
| Timestamp of data source generation. | |
| uint16_t | mnNumRows |
| number of rows in the image | |
| uint16_t | mnNumCols |
| number of cols in the image | |
| uint16_t | mnImageNumber |
| consecutive image number | |
| uint8_t | mnImageType |
| the image data type (see EDDIMGMSG_* defines) | |
| uint8_t | mnFlags |
| float | mnOffset [2] |
| not used | |
| float | mnScale [2] |
| not used | |
Detailed Description
image description message (Server->Client)Image Description message. This message is sent prior to each output image from the tcEDDImageDataSource.
Definition at line 39 of file EDDImageDataMsg.h.
Member Data Documentation
| uint8_t tsEDDImageDescMsg::mnFlags |
bit 0 : Sparse Encoding
bits 1-7 : reserved
Definition at line 51 of file EDDImageDataMsg.h.
| uint16_t tsEDDImageDescMsg::mnImageNumber |
| uint8_t tsEDDImageDescMsg::mnImageType |
| uint16_t tsEDDImageDescMsg::mnNumCols |
| uint16_t tsEDDImageDescMsg::mnNumRows |
| float tsEDDImageDescMsg::mnOffset[2] |
| float tsEDDImageDescMsg::mnScale[2] |
The documentation for this struct was generated from the following file:
