tsEDDPlotDescMsg Struct Reference
Plot Description Message (Server->Client). More...
#include <EDDPlotDataMsg.h>

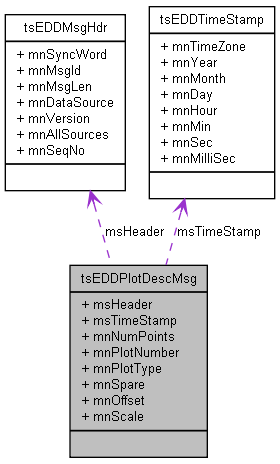

Collaboration diagram for tsEDDPlotDescMsg:
Public Attributes | |
| tsEDDMsgHdr | msHeader |
| default header | |
| tsEDDTimeStamp | msTimeStamp |
| time of plot | |
| int32_t | mnNumPoints |
| uint16_t | mnPlotNumber |
| plot number, or refresh cycle on rolling plots | |
| uint8_t | mnPlotType |
| see definitions below | |
| uint8_t | mnSpare |
| reserved | |
| float | mnOffset [3] |
| may be used to offset provided results | |
| float | mnScale [3] |
| may be used to rescale provided results | |
Detailed Description
Plot Description Message (Server->Client).Plot Description message. This message is sent prior to each output plot from the tcEDDPlotDataSource object.
Definition at line 33 of file EDDPlotDataMsg.h.
Member Data Documentation
| int32_t tsEDDPlotDescMsg::mnNumPoints |
Number of points in the plot:
When 0, rolling plot (client decides history)
When -N, rolling plot, when N is recommended history (but client still decides)
When N (>0), fixed plot length data plot presented
Definition at line 44 of file EDDPlotDataMsg.h.
| float tsEDDPlotDescMsg::mnOffset[3] |
| uint16_t tsEDDPlotDescMsg::mnPlotNumber |
| uint8_t tsEDDPlotDescMsg::mnPlotType |
| float tsEDDPlotDescMsg::mnScale[3] |
| uint8_t tsEDDPlotDescMsg::mnSpare |
The documentation for this struct was generated from the following file:
