tsEDDPlotMsg Struct Reference
Plot Data Message (Server->Client). More...
#include <EDDPlotDataMsg.h>

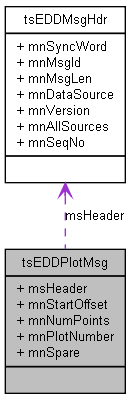

Collaboration diagram for tsEDDPlotMsg:
Public Attributes | |
| tsEDDMsgHdr | msHeader |
| uint32_t | mnStartOffset |
| Offset of first plot point set in message. | |
| uint16_t | mnNumPoints |
| number of points in message | |
| uint16_t | mnPlotNumber |
| may or may not increment in rolling plots | |
| uint8_t | mnSpare [4] |
| reserved | |
Detailed Description
Plot Data Message (Server->Client).This is a common header used for all 1, 2, and 3 dimensional data plot messages. The messages are variable length. More than one message may be required to fully transmit a plot image. Following the mnSpare words is the data payload, which is packed according to the mnPlotType field in the preceding tsEDDPlotDescMsg.
Definition at line 91 of file EDDPlotDataMsg.h.
Member Data Documentation
| uint16_t tsEDDPlotMsg::mnNumPoints |
| uint16_t tsEDDPlotMsg::mnPlotNumber |
| uint8_t tsEDDPlotMsg::mnSpare[4] |
| uint32_t tsEDDPlotMsg::mnStartOffset |
Definition at line 93 of file EDDPlotDataMsg.h.
The documentation for this struct was generated from the following file:
